Wide Working Voltage
The tracker operates on a wide voltage range from 9-90VDC, making it compatible with different types of vehicles and their power supplies. It ensures stable operation regardless of the vehicle's power system.
Light and Compact

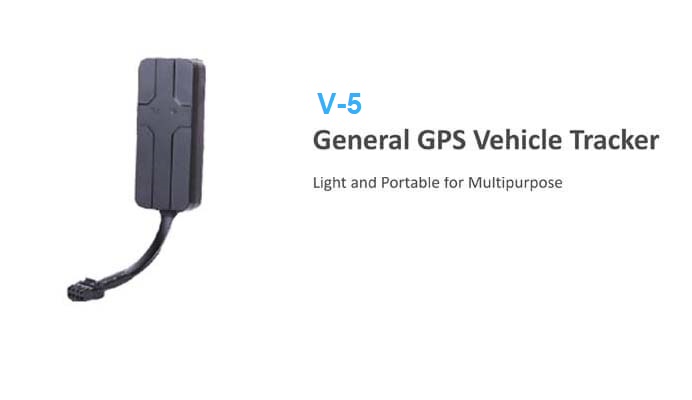

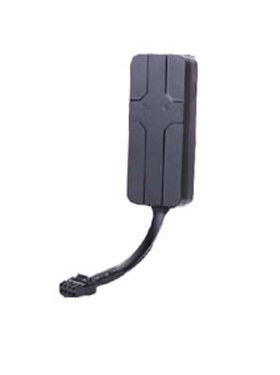

Despite its small and lightweight design, weighing only 38 grams, the V-5 tracker is equipped with all the necessary functions for efficient tracking and monitoring.
Built-in Battery
The tracker has a built-in battery that supports a standby time of up to 60 hours. In the event of a power supply failure, the battery can act as a backup for around three hours, allowing for troubleshooting and continued operation.
High-Sensitive GPS Chipset
The V-5 tracker utilizes the latest MTK high-sensitive GPS chipset with a built-in antenna. This chipset helps to shorten the Time to First Fix (TTFF), ensuring faster and more accurate location information.
ACC Detection
The tracker is equipped with ACC signal detection, which keeps you informed about changes in your vehicle's ignition status. This feature allows you to monitor when the vehicle is turned on or off.
Driving Behavior Analysis
The V-5 tracker includes driving behavior analysis features such as harsh acceleration, harsh brake, and sharp turn alarms. These functions enable monitoring and analysis of the vehicle's driving habits and patterns.
Brand | Concox |
Manufacturer | Conxox |
Model | V-5 |
GSM frequency | 850/900/1800/1900 MHz |
GPRS | Class 12, TCP/IP |
Memory | 32 + 32Mb |
Phrase error | RMSPE<5,PPE<20 |
GPS chipset | MTK high sensitivity chip |
GPS channel | 66 |
Tracking sensitivity | -165dBm |
Battery | 60mAh/3.7V Li-Polymer battery |
Voltage | 9-90VDC/7mA (60VDC) |
Standby time | 60 hours |
Working time | 3 hours |
Operating temperature | -20℃~ 70℃ |
Dimensions | 78.0 x 41.0 x 13.0 (L x W x H) mm |
Packer | Conxox- Made in china |
Country of Origin | China |
Weight | 38 g |
