Description

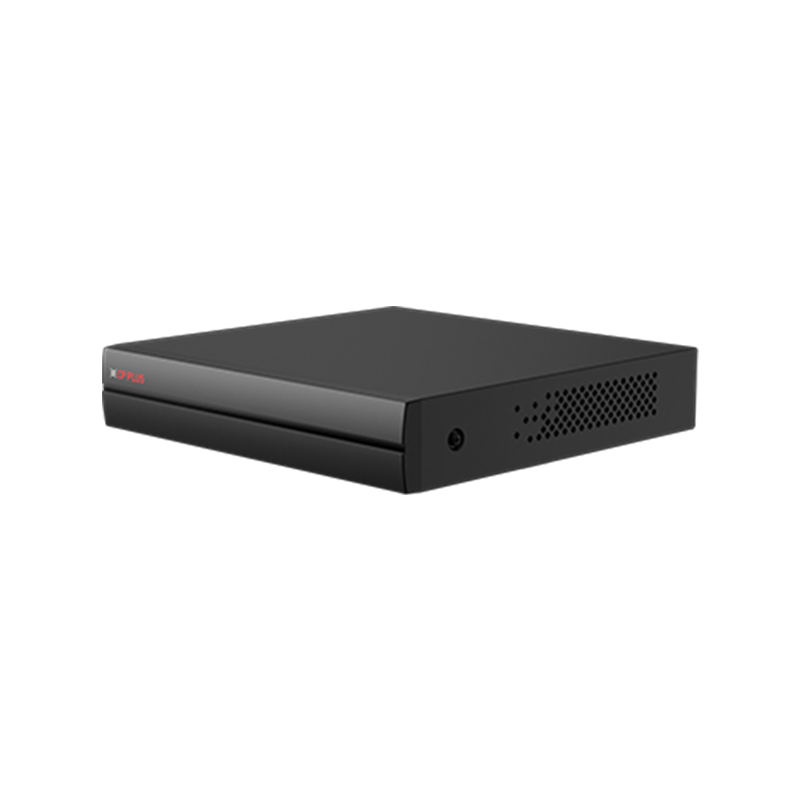

8-Channel Hybrid DVR
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs for maximum camera flexibility.
Up to 12 IP Camera Channels
Supports up to 12 IP cameras, with each IP channel supporting resolutions of up to 6MP.
64 Mbps Incoming Bandwidth
Handles high-quality video streams efficiently for smooth and reliable surveillance recording.
8-Channel Two-Way Audio
Enables seamless two-way communication between the camera, client, and recorder over coaxial cable.
Advanced AI Human & Vehicle Detection
Supports 8-channel IMD+ for analog channels or 12-channel IMD by camera, helping accurately identify humans and vehicles and trigger smarter alarms.
8-Channel AI Coding
Optimizes storage and bandwidth usage while maintaining important details of target objects in recorded footage.
Advanced Video Compression
Supports InstaStream, H.265, H.264+, H.264, and dual-stream compression for efficient recording and transmission.
Remote Mobile Monitoring
Monitor your CCTV system anytime and anywhere using iCMOB and gCMOB mobile applications.
Features
| Brand | CP PLUS |
|---|---|
| Manufacturer | CP PLUS |
| Model | CP-UVR-0801F1V-I |
| Processor | 8th Gen-i3-8130(3.4 Ghz) |
| Operating System | Embedded LINUX |
| Video Output | 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Audio Input | 1 Channel RCA 8 Channels BNC (Coaxial Audio) |
| Power Supply | 12 VDC, 1.5 |
| Power Consumption | <7 W (without HDD) |
| Operating Temperature | –10°C to +45°C (+14°F to +113°F) |
| Dimensions | 197.0 mm × 204.3 mm × 41.5 mm |
| Weight | 590g |
| Country of Origin | India |
| Packer | CP PLUS |
| Importer | CP PLUS |
| Warranty | 1 Year |
