Description

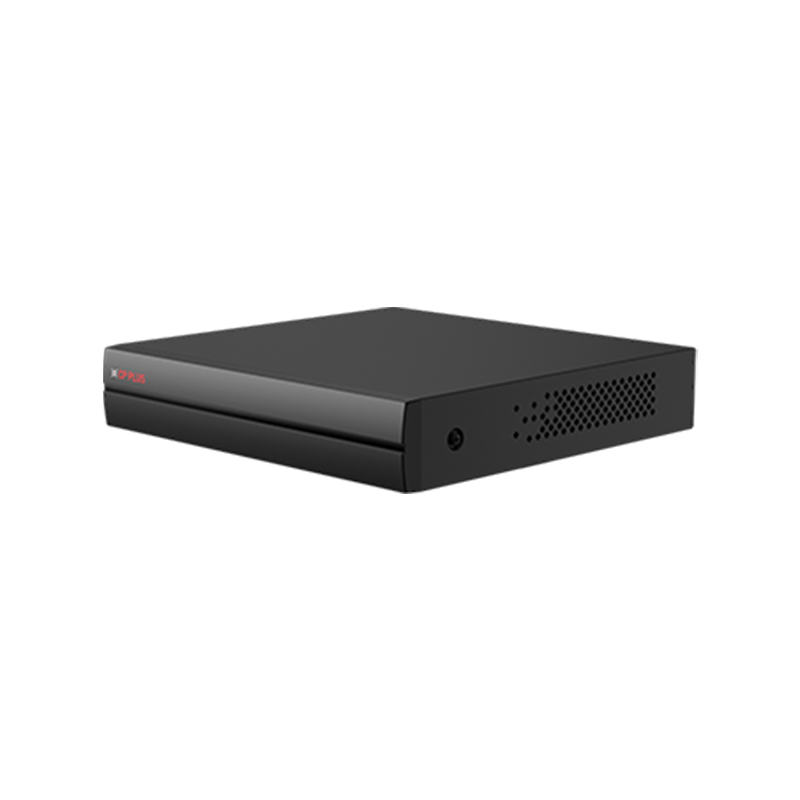

4-Channel Hybrid DVR
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs for versatile surveillance setups.
Up to 6 IP Camera Channels
Supports up to 6 IP cameras, with each IP channel supporting resolutions of up to 6MP.
32 Mbps Incoming Bandwidth
Provides efficient handling of high-quality video streams for smooth and reliable recording.
Two-Way Audio Over Coaxial
All 4 channels support two-way talk, enabling seamless communication between the camera, client, and recorder.
Advanced AI Human & Vehicle Detection
Supports 4-channel IMD+ for analog channels or 6-channel IMD by camera, helping accurately identify humans and vehicles for smarter alarm triggering.
4-Channel AI Coding
Reduces storage requirements and bandwidth consumption while preserving important details in target objects.
Advanced Video Compression
Supports InstaStream, H.265, H.264+, H.264, and dual-stream compression for optimized storage and transmission.
Remote Mobile Monitoring
Access and monitor your CCTV system remotely through iCMOB and gCMOB mobile applications.
CMS Compatibility
Supports KVMS Pro Lite for convenient centralized surveillance management.z
Features
| Brand | CP PLUS |
|---|---|
| Manufacturer | CP PLUS |
| Model | CP-UVR-0401F1V-I |
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Video Output | 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Audio Input | 1 Channel RCA 4 Channels BNC (Coaxial Audio) |
| Audio Output | 1 Channel RCA |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <4 W (without HDD) |
| Operating Temperature | –10°C to +45°C (+14°F to +113°F) |
| Dimensions | 197.0 mm × 204.3 mm × 41.5 mm |
| Weight | 580g |
| Country of Origin | India |
| Packer | CP PLUS |
| Importer | CP PLUS |
| Warranty | 1 Year |
